Belts for Wood Industry

Our prepress belts are meticulously engineered to meet the rigorous demands of industrial production processes. With an anti-static surface option, these belts effectively dissipate static electricity, minimizing the risk of sparks and ensuring a safer working environment. In addition, our prepress belts feature a frayless edge design that prevents fraying and ensures smooth operation throughout their life. With a focus on durability, these belts resist delamination and maintain their structural integrity even under harsh conditions.

In addition, our prepress belts offer high chemical and abrasion resistance for long-lasting performance in demanding industrial environments.

Download Catalogue

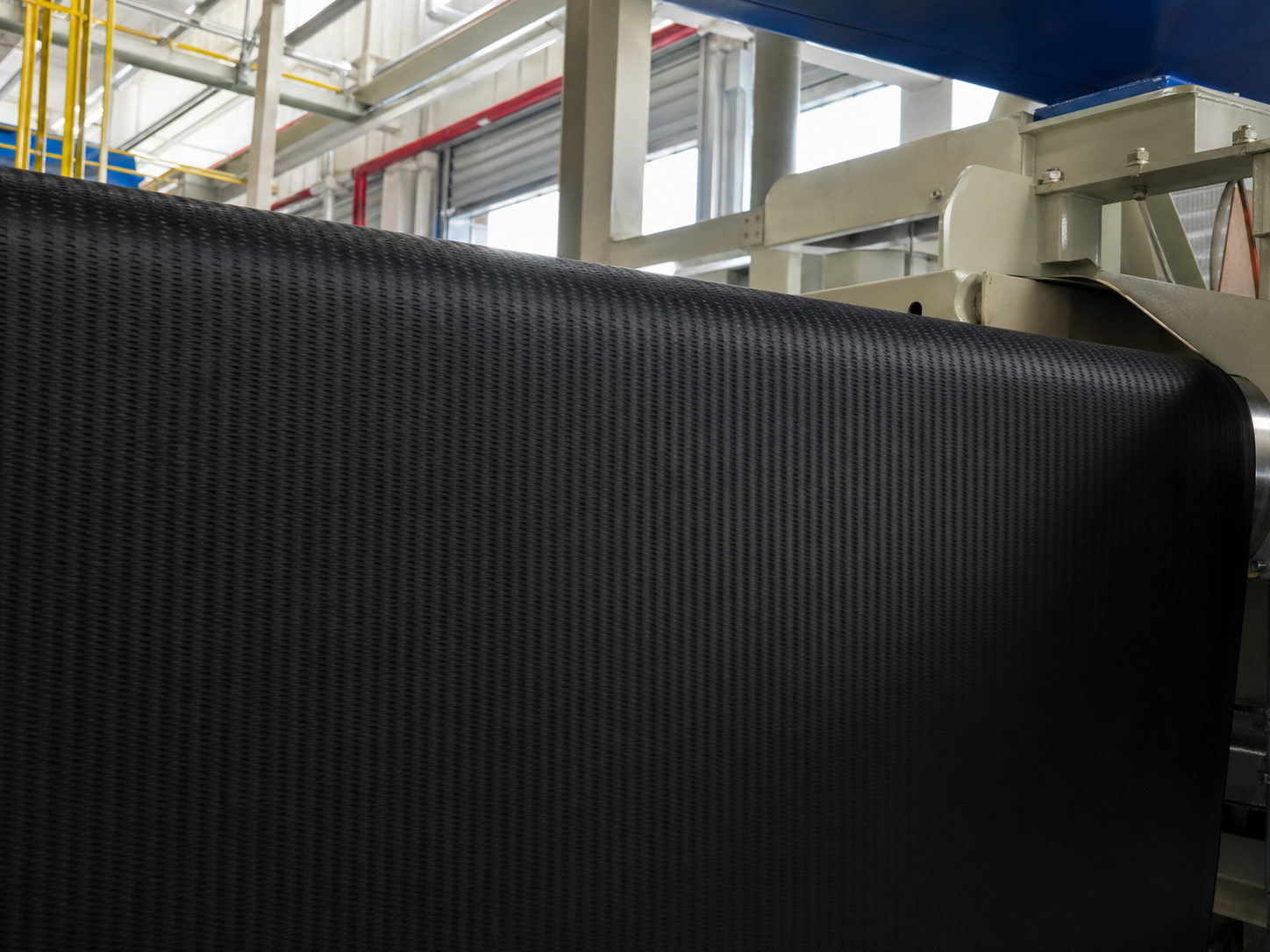

Prepress Belts

Belt Type	Material	Thickness mm	Weight kg/m²	Min. Pulley mm	Belt Factor at 1% Elongation N/mm	Working Temperature °C	Antistatic
							Surface	Bottom
PU-150AE/40M1/AS	PU/Aramid	3.8	4.3	250	60	-20 / +90	■	■
EUT-30E/40	TPU/PET	4.0	4.0	200	30	-20 / +90	–	■

Forming Belts

Our forming belts are designed to provide reliable performance and consistent results in industrial applications. With an antistatic surface option, these belts effectively control the build-up of static electricity, minimizing the risk of damage to sensitive components and ensuring product quality. In addition, our forming belts resist delamination and maintain their structural integrity even during high-pressure forming processes. With a homogeneous belt surface, these belts provide uniformity and consistency in product forming, resulting in superior quality and precision. You can rely on our forming belts to deliver exceptional performance and reliability to meet the rigorous demands of industrial production processes.

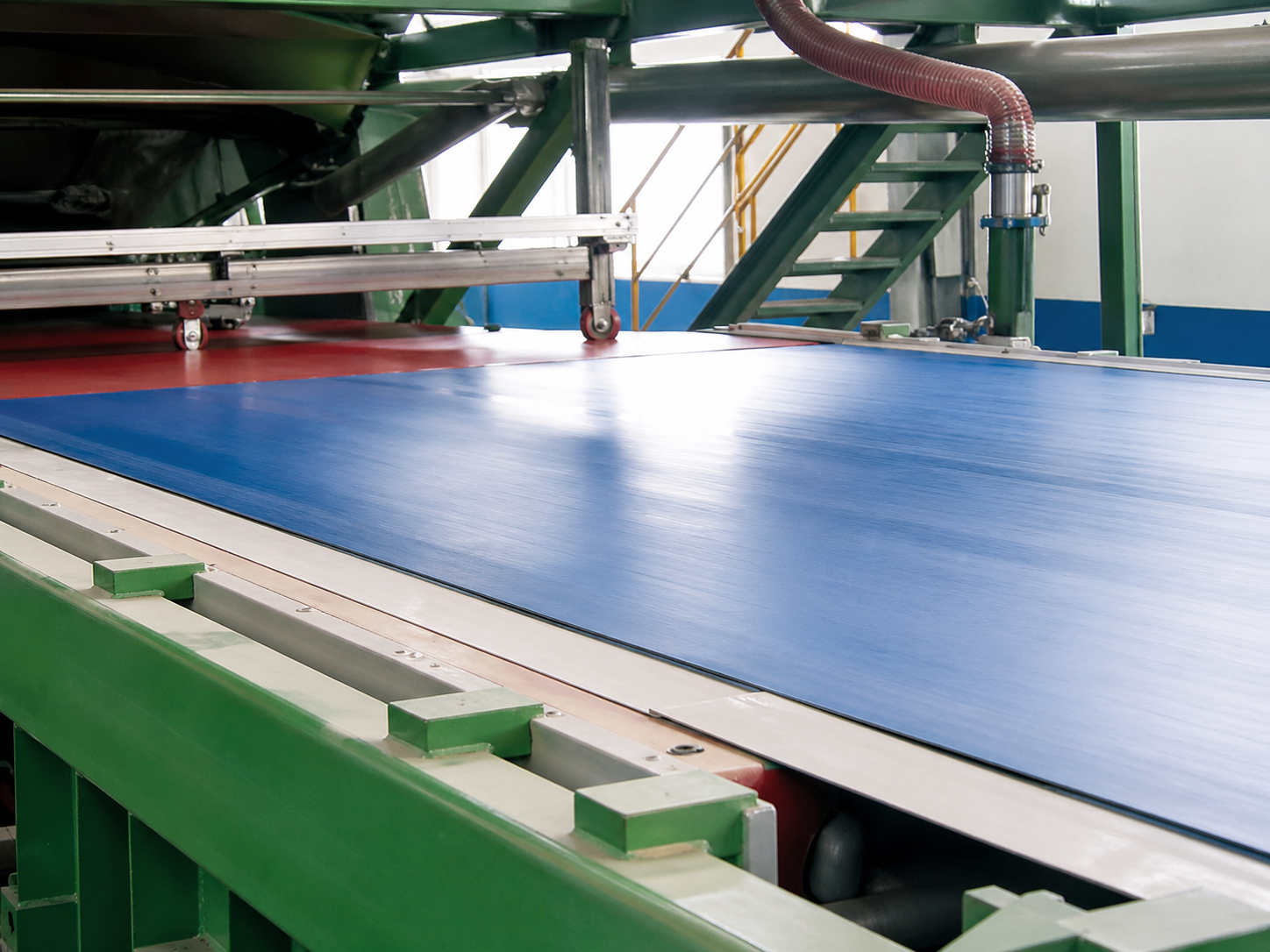

Anti-Static Formin Belts

Belt Type	Material	Thickness mm	Weight kg/m²	Min. Pulley mm	Belt Factor at 1% Elongation N/mm	Working Temperature °C	Antistatic
							Surface	Bottom
EUT-E20BLM1/AS	TPU/PET	1.75	2.10	20	20	-30 / +100	■	■
EUT-E20BLM1	TPU/PET	1.75	2.10	20	20	-30 / +100	–	■
EUT-40A/18	TPU/Aramid	1.8	2.10	20	40	-15 / +80	–	■
UT1-E20WM	PU/PET	1.8	2.00	20	20	-15 / +80	–	■
EVT-E20LBM1	EVT/PET	1.9	2.10	30	20	-20 / +80	–	■

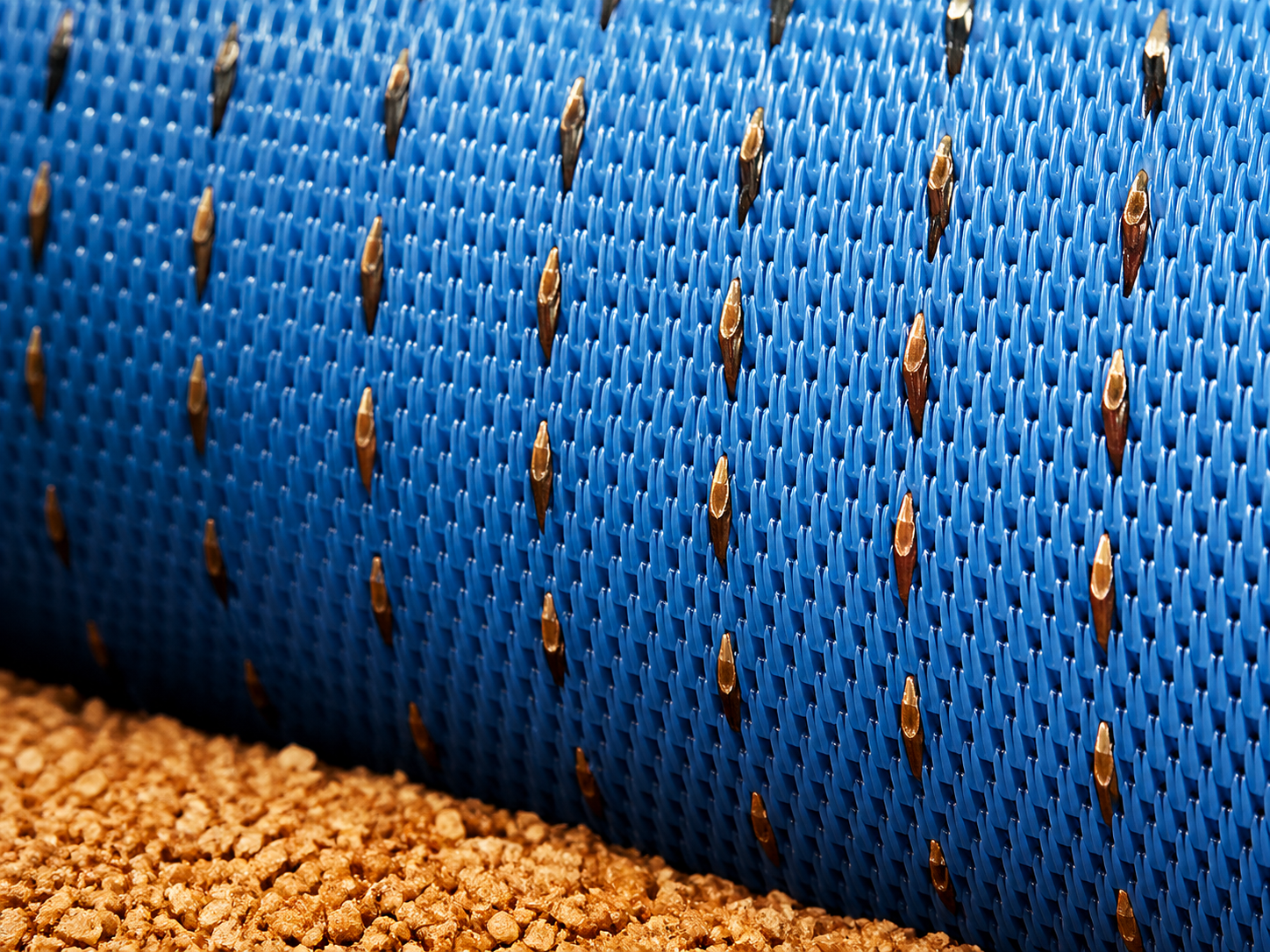

Ventilation Belts

Ventilation belts are specialized, high-permeability conveyor belts used primarily in the wood-processing industry (MDF/particleboard production) to remove air from mats during prepressing. Made from robust polyester monofilament, they allow for controlled air flow to improve mat density while resisting abrasion. They are essential for boosting productivity in wood panel manufacturing.
